Electronics manufacturing faces a relentless push toward extreme component miniaturization. Modern devices demand smaller multi-layer ceramic capacitors (MLCCs) and regulatory-compliant, lead-free piezoelectric components. Engineers struggle to maintain ceramic property stability under these strict physical constraints. Shrinking active layers and removing toxic lead often cause unexpected dielectric breakdown. They also trigger erratic temperature responses and poor mechanical reliability in the field. You cannot achieve microscopic precision without advanced chemical dopants to stabilize the base ceramic materials.

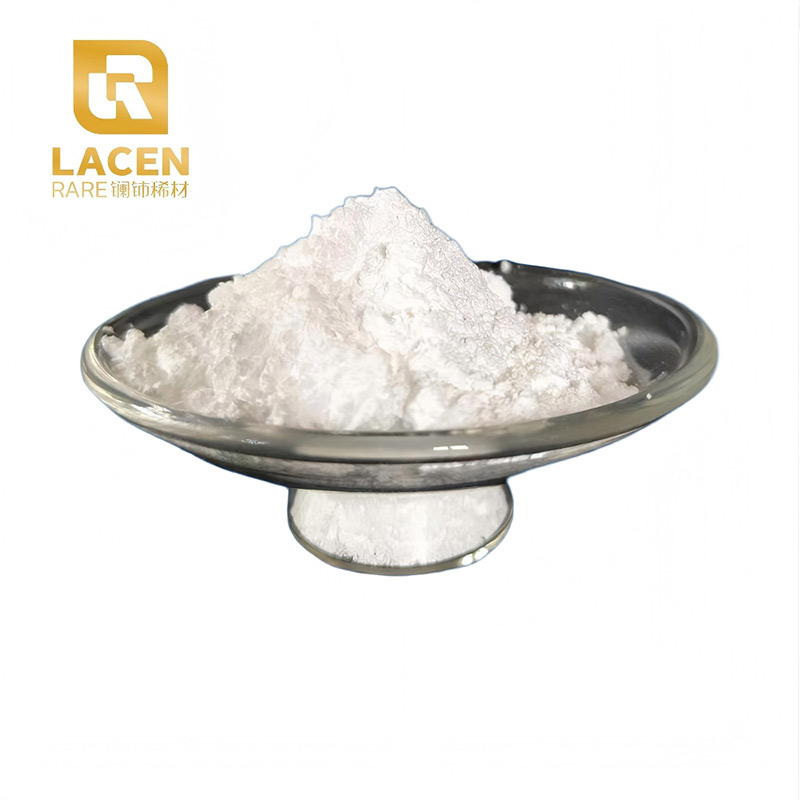

Lanthanum Oxide (La₂O₃) acts as a critical rare-earth modifier in modern material science. It directly controls grain growth during processing. It effectively shifts the Curie temperature (Tc) to meet industry standards. Furthermore, it drastically improves the overall piezoelectric performance of barium titanate (BaTiO₃) and various PZT-based systems. We designed this article to provide R&D and procurement teams a clear, actionable evaluation framework. You will learn exactly how to specify, handle, and source industrial-grade materials for high-stakes electroceramic applications.
Electronics manufacturers deal daily with deeply conflicting demands. You must increase energy storage density to support advanced computing. You need higher sensor sensitivity for automotive and industrial applications. At the same time, you must shrink the physical component footprint. You also have to guarantee strict compliance regarding hazardous substances, specifically navigating complex RoHS and REACH regulations. Solving these compounding business problems requires intelligent, highly targeted material science.
The core solution mechanism relies heavily on aliovalent doping. When you introduce a dopant into a standard perovskite crystal structure, it substitutes at specific atomic locations. It occupies either the A-site or the B-site of the lattice. This positioning depends entirely on the initial Barium to Titanium (Ba/Ti) ratio within your formulation. By replacing specific native ions, the dopant fundamentally alters the internal charge balance. This controlled internal imbalance effectively prevents runaway grain growth during high-temperature sintering phases.
You can measure successful material integration through three primary technical criteria. Achieving these metrics indicates a stable, production-ready ceramic body:
When engineering teams optimize this precise chemical substitution, they achieve robust electroceramic formulations. These enhanced materials easily handle the intensive electrical loads required by modern semiconductor ecosystems.
Grain core-shell engineering forms the absolute backbone of modern MLCC production. You cannot manufacture high-capacitance MLCCs using large, unstructured grains. Active dielectric layers inside consumer electronics now routinely measure well under 0.5 µm in thickness. Because active layers are so thin, maintaining fine grain sizes below 1 µm becomes absolutely mandatory. Lanthanum Oxide acts as a powerful microstructural inhibitor. It wraps directly around the barium titanate (BaTiO₃) grain cores. This chemical shell physically suppresses abnormal grain growth during high-temperature firing. The result gives you a uniform, ultra-fine microstructure capable of sustaining intense electric fields without rupturing.
Temperature stability remains a massive hurdle for capacitor design. Electronic Components Industry Association (EIA) standards, specifically classifications like X7R and X5R, require strict capacitance stability. For an X7R rating, the capacitance must not vary more than ±15% from -55°C to +125°C. Doping the crystalline lattice shifts and broadens the natural Curie peak. The Curie peak marks the exact temperature where the material exhibits its maximum dielectric constant. By flattening this prominent peak, the modifier ensures the dielectric constant remains highly stable across volatile thermal environments.
Insulation resistance directly dictates long-term capacitor reliability. High operating voltages strip oxygen molecules from the ceramic lattice. This creates microscopic oxygen vacancies. These localized vacancies act as mobile charge carriers within the component. They steadily increase leakage current and degrade performance over time. La-doping minimizes the initial formation of these dangerous oxygen vacancies. This vital chemical stabilization drastically improves component survival rates during highly accelerated life testing (HALT). Capacitors simply survive longer under extreme voltage stress and thermal cycling.
Lead Zirconate Titanate (PZT) has dominated the commercial piezoelectric market for decades. Adding Lanthanum Oxide transforms standard PZT into PLZT. This simple transition unlocks immense commercial and technical benefits. The modification generates what the industry calls "soft" piezoelectric characteristics. You get a much higher dielectric constant (ε). You also achieve a greatly increased piezoelectric charge coefficient (d33). Furthermore, carefully processed PLZT achieves remarkable optical transparency. Engineers use this specific visual trait for advanced electro-optic modulators and smart thermal lenses.
The global industry is rapidly shifting away from lead-based materials. Regulatory compliance forces major manufacturers to explore lead-free piezoelectric alternatives aggressively. Systems like BNT-BT (Bismuth Sodium Titanate-Barium Titanate) or KNN (Potassium Sodium Niobate) show incredible promise. When used as a strategic modifier in these emerging systems, the dopant disrupts long-range ferroelectric order. This intentional disruption enhances relaxor behavior. You gain better overall energy storage efficiency. You also secure a much more manageable mechanical strain response during actuation.
However, material science always involves calculating performance trade-offs. While you gain valuable sensitivity and mechanical compliance, you simultaneously sacrifice thermal range. La-doping fundamentally lowers the Curie temperature of the base ceramic. This lower thermal threshold strictly limits high-temperature deployment. You must evaluate this specific dimension carefully if you design sensors for extreme environments. Aerospace engine monitoring systems and automotive exhaust sensors often exceed the thermal limits of heavily doped soft piezoelectrics.
Procuring raw chemical powders goes far beyond checking a catalog name. Strict purity requirements dictate your final product yield. You must carefully weigh the technical benefits against sourcing costs when choosing between 99.9% (3N) and 99.999% (5N) purity levels. Trace impurities ruin delicate electroceramics. Elements like iron, silica, or trace rare earths like neodymium act as unwanted charge carriers. They increase dielectric loss and cause highly erratic conductivity. Procurement teams must demand rigorous Certificates of Analysis (CoA) for every single batch. You need documented proof validating the absence of specific transition metals.
| Purity Grade | Typical Application | Impact of Trace Impurities |
|---|---|---|
| 99.9% (3N) | Standard PZT actuators, thick-film components. | Acceptable for lower voltage thresholds; minor dielectric loss. |
| 99.99% (4N) | High-capacitance MLCCs, advanced sensors. | Prevents defect cascades; highly stable insulation resistance. |
| 99.999% (5N) | Optical grade PLZT, specialized aerospace piezoelectrics. | Zero optical distortion; perfect crystal lattice integrity. |
Particle size distribution (PSD) strongly influences baseline production success. Base titanates require flawlessly homogeneous mixing before initial calcination. You need a highly consistent D50 value. This value typically sits deep in the sub-micron range. The specific surface area (BET) also must match your internal mixing protocols perfectly. When particles disperse uniformly in the slurry, they calcine uniformly in the kiln. This consistency prevents localized chemical variations. Such variations inevitably weaken the final ceramic body under mechanical stress.
Batch-to-batch consistency separates viable long-term suppliers from risky spot-market vendors. You cannot afford to recalibrate your expensive production line every time a new powder shipment arrives. Traceable supply chains are an absolute necessity. Reproducible manufacturing processes on the supplier side guarantee predictable shrinkage rates. They ensure exact phase purity inside your facility, saving thousands in lost production hours.
Handling this raw material introduces severe physical implementation risks. The powder itself is fiercely hygroscopic. It rapidly absorbs ambient moisture from the factory air. It also binds quickly to airborne carbon dioxide. This rapid hydration transforms the pure powder into lanthanum hydroxide and lanthanum carbonate. These secondary compounds destroy your carefully calculated chemical formulations.
Uncontrolled hydration severely impacts daily manufacturing. When the powder absorbs water, it gains invisible weight. This artificial weight gain leads to highly inaccurate weighing during the batching phase. Your exact stoichiometry immediately becomes flawed. Furthermore, hydrated powders agglomerate aggressively during ball milling. When these heavy clumps hit the high-temperature sintering furnace, they outgas violently. This massive gas expansion causes disastrous micro-cracking. It introduces massive internal porosity within the finished ceramic body.
You must implement aggressive risk mitigation tactics to protect your overall yield. Consider the following established handling protocols immediately:
By respecting these strict physical handling constraints, you prevent catastrophic structural failures. You ensure the longevity and reliability of your finished capacitors and piezoelectric sensors.
Specifying advanced dopants is not a simple commodity purchase. It represents a highly technical integration process. Success requires tight, ongoing alignment between R&D, process engineering, and procurement teams. You must thoroughly evaluate potential suppliers far beyond their baseline chemical formulas. Material morphology, rigorous purity verification, and protective packaging hold equal weight in your final sourcing decision.
Take decisive action on your next sourcing cycle. Encourage your buyers to request immediate sample batches. Ensure lot-specific CoAs accompany every single sample. Initiate pilot manufacturing runs immediately upon receipt. Focus your internal evaluations strictly on powder dispersion behaviors and final sintering densities. This practical testing will rapidly validate the supplier's true material quality and consistency.
A: Its specific ionic radius allows for optimal substitution directly into the perovskite lattice. It provides a unique, highly effective balance of grain growth suppression and robust dielectric stabilization. It accomplishes this without the severe cost volatility frequently associated with heavier rare-earth elements.
A: Moisture absorption drastically alters the powder's true physical mass. This leads directly to non-stoichiometric mixtures during batching. It also creates carbonates. These carbonates release aggressive gas during high-temperature firing. This results in porous, structurally weak ceramics exhibiting extremely poor electrical insulation.
A: Yes, it is entirely lead-free and non-toxic. This safety profile makes it a critical enabling material. Engineers rely on it heavily during the active R&D of modern RoHS-compliant, lead-free piezoelectric actuators and advanced electronic sensors.
A: Standard industrial applications generally require a strict minimum of 99.9% (3N) purity. However, advanced ultra-thin MLCCs often demand 99.99% (4N) or higher. This exceptional purity prevents catastrophic defect cascades caused by rogue trace transition metal impurities.
